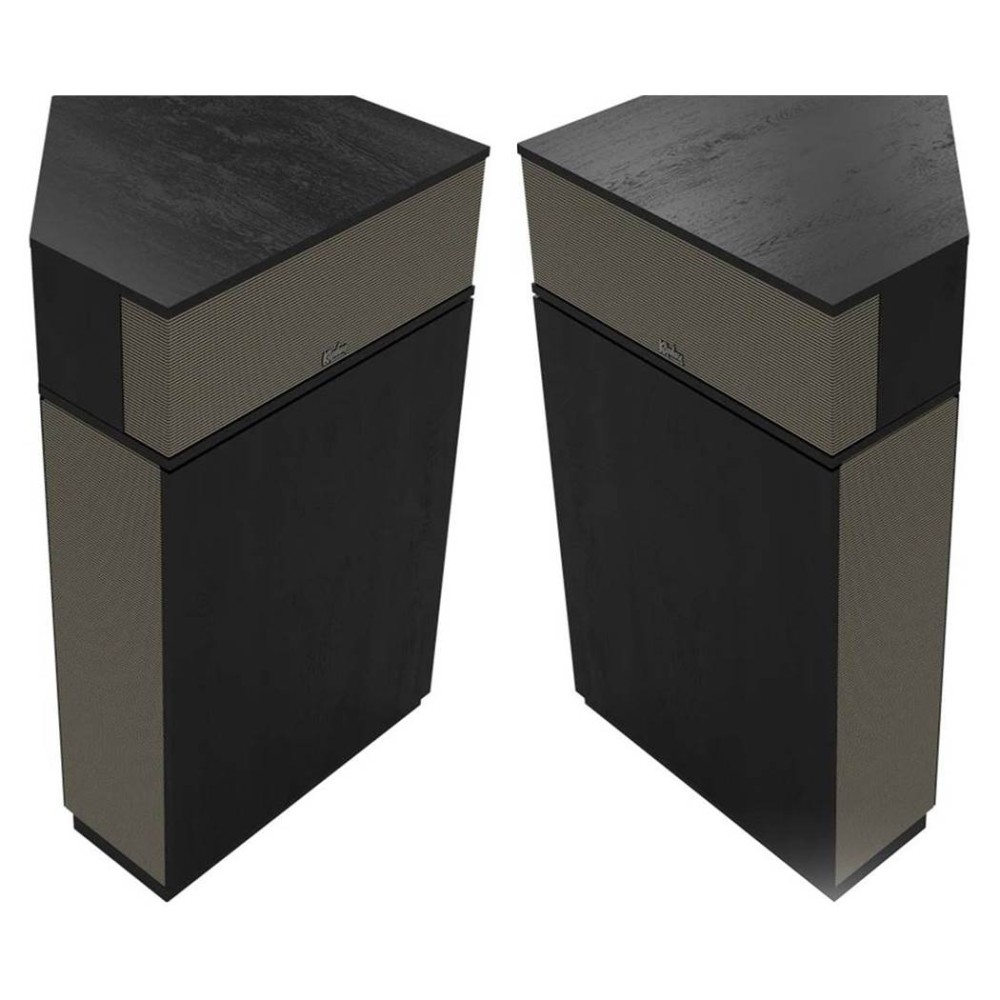

Klipsch Klipschorn AK7 Specifications
|
Rs.1,823,220.37
|
||
| Type | Wired Speakers | |
|---|---|---|
| Available Colors | BlackGold | |
| Waterproof Rating | ||
| Dimensions | 1352.5 mm X 800 mm X 330 mm | |
| Klipsch Klipschorn AK7 Specifications | |
|---|---|
| Driver Type | Dynamic |
Driver Diameter  |
Midrange : K-1133-HP 3” Compression Driver On A K-406 Horn. Low Frequency Driver : K-33-E 15” Woofer In A Fully Horn Loaded System. High Frequency Driver : K-771 Compression Driver With Extended Phase Plug On A K-792 Horn. |
| Impedance |
8 Ohms, 4 Ohm Minimum At 50Hz |
| Sensitivity |
103dB, Pink Noise, 2.83V, 1m. 34 Hz-19KHz. Maximum SPL : 120dB, Pink Noise, 1m, 20v, 34Hz-19KHz |
| Frequency Response |
34Hz-19KHz ( +/- 4 dB ), 1/8 Space Anechoic, Crossover Frequency : 380Hz, 2900Hz |
| Maximum Power Input | AC 100-240V 50/60Hz |
| Maximum Power Output | 100 W, Peak: 400 W ( RMS ) |
| Noise Cancelling | |
| Signal to Noise Ratio | 120dB |
| Aux Connectivity | No |
| Bluetooth Connectivity | No |
| Weight | 118 Kg |
| Accessories | Klipsch Klipschorn AK7 Loudspeaker User Manual |
| Other Features | |
Legendary Folded-Horn Woofer : Employs a K-33-E 15-inch low-frequency driver within a fully horn-loaded cabinet to provide high efficiency and deep, impactful bass. Upgraded High-Frequency Tweeter : Utilizes a K-771 compression driver paired with a patented wide-dispersion extended phase plug for better off-axis coverage and clarity. 3-Inch Midrange Compression Driver : Upgraded cinema-grade K-1133-HP titanium diaphragm driver increases sound pressure and delivers a more natural, immersive midrange body. Patented Tractrix® Midrange Horn with Mumps : The new K-406M horn features a shorter 2-inch throat and Mumps technology to control polars, smooth dispersion, and maintain frequency response to the edges. Active and Passive Crossover Support : Features a redeveloped back-panel I/O panel supporting standard passive operation or seamless integration with an optional Klipsch Heritage Active Crossover system for advanced time and phase alignment. |
|
