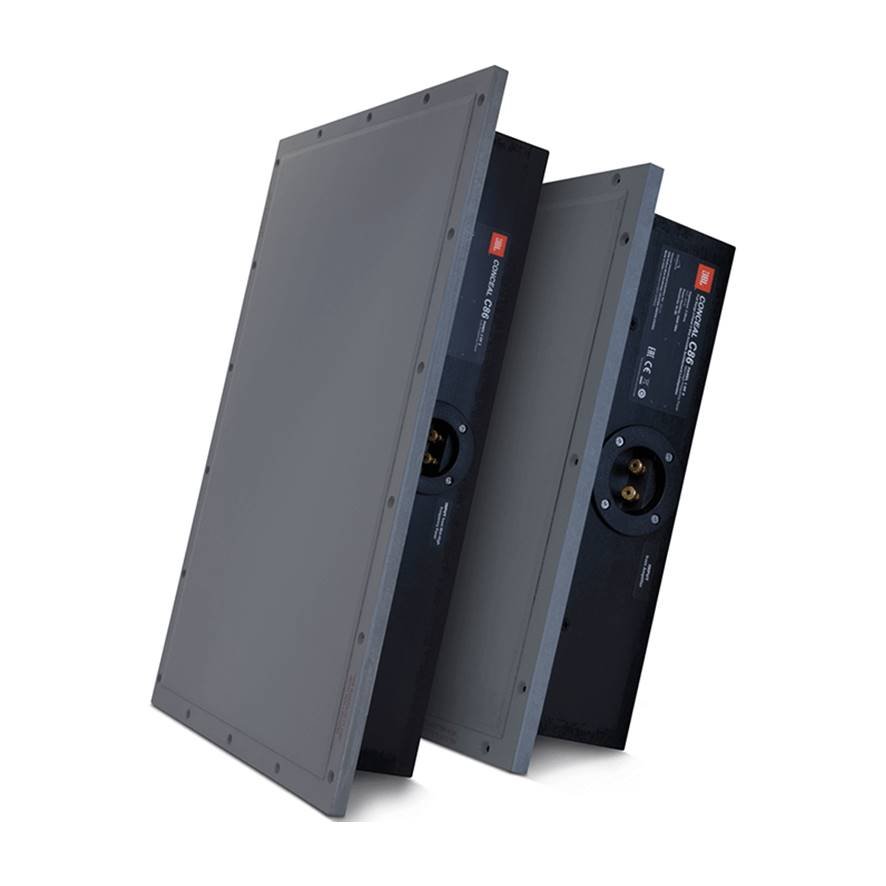

JBL Conceal C86 Specifications

     View Other JBL Wired Speakerss
Appx Price Rs.269,990.00

Type Wired Speakers
Available Colors
 Grey
Waterproof Rating NA
Dimensions MF : 302 mm X 403 mm X 98 mm, LF : 559 mm X 403 mm X 98 mm


JBL Conceal C86 Specifications

Driver Type Dynamic
Driver Diameter 203 mm Woofer With 38 mm Voice Coil, 30 mm Voice Coil T. With N.M, 25 mm Voice Coil T. With N.M
Impedance 4 Ohms
Sensitivity 84 dB/1W/1m
Frequency Response 40Hz - 20KHz, Frequency Response : 600 Hz; 10 KHz
Maximum Power Output
50 - 200 ( RMS )
Aux Connectivity No

Weight MF/HF : 5.9 Kg, LF : 9.9 Kg
Accessories
JBL Conceal C86 3-Way In-Wall / In-Ceiling Loudspeaker
Owners Manual

Other Features

5 Years Warranty.
Integrated back box enclosure.
Installs like a standard drywall patch.
Paintable surface can also be custom finished.
Proprietary Fidelity Glass acoustic panel and compression molded baffle.
Two-piece design with 8-inch LF panel and separate five-element HF panel.
Custom designed transducers with JBL premium acoustic crossover network.
