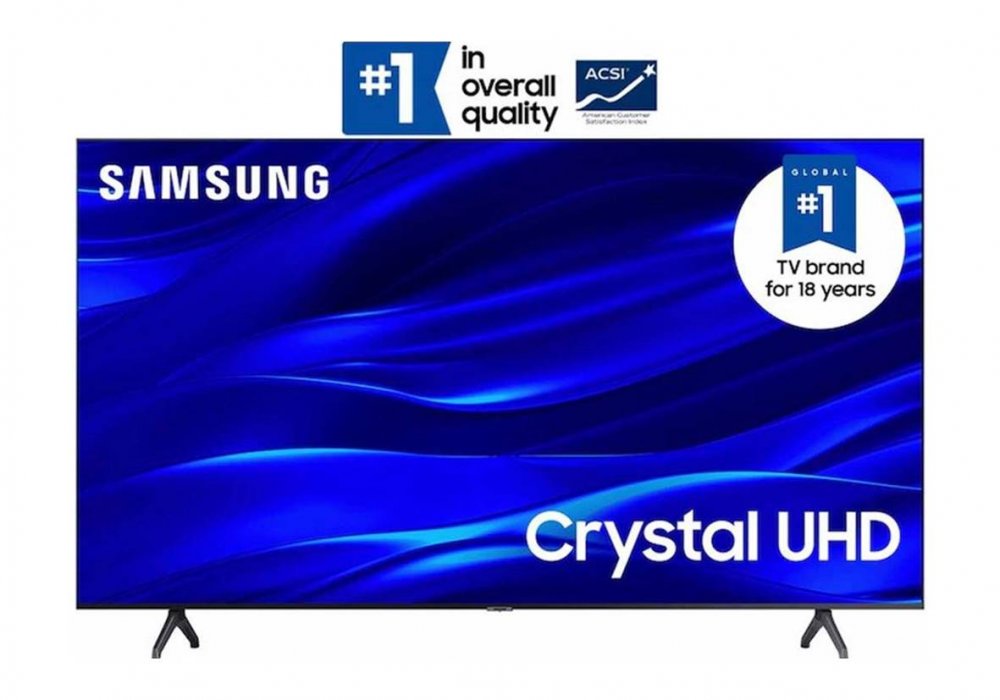

Samsung UN65TU690TF / UN65TU690TFXZA Specifications

  Online Manual    Compare Icon View Other Samsung Smart TVs
Appx Price Rs.33,411.02
WhatsApp Icon   Facebook Icon   Twitter Icon
TV Type Smart TV
Screen Size 65 Inch (164 cm) 65 Inch TV Dimensions
Screen Resolution 4K 3840 x 2160
Aspect Ratio 16:9
Motion Rate 60 Hz
Viewing Angle 178°/178°
View Latest 65.00 inch Smart TV Prices & Features

USB Features

USB Version 2.0
Supported Audio Formats MP3, FLAC, OGG, WMA, WAV, MIDI, APE, AIFF, ALAC, M4A, MPA, AAC, SVAF, WEBM, RMVB
Supported Video Formats AVI, MKV, MP4, ASF, MOV, 3GP, FLV, VRO, VOB, SVI
Supported Picture Formats JPG, JPEG, PNG, BMP, MPO

Other Video Features

Backlight 4K UHD LED
HLG Yes
HDR Yes
Film Mode Yes
Picture Quality Yes
Filmmaker Mode Yes
LED Clear Motion Yes
Auto Motion Plus Yes
Contrast Enhancer Yes
Natural Mode Support Yes
Compatible With HDR10+ Yes
Color PurColor
BLU Type New Direct
Contrast Mega Contrast
Picture Engine Crystal Processor 4K
Brightness / Color Detection Brightness Detection

Other Audio Features

Sound Output ( RMS ) 20 W
Dolby Yes
Multiroom Link Yes
Adaptive Sound Yes
Sound Mirroring Yes
Bluetooth Audio Yes
Dolby Digital Plus Yes
Dialog Enhancement Yes
Bluetooth Headset Support Yes
Speaker Type 2 Channel

Connectivity Options

HDMI 2
USB 2.0 1
eARC Yes
Wi-Fi Direct Yes
Bluetooth 4.2 Yes
Ethernet / LAN Yes
HDMI Quick Switch Yes
Anynet+ ( HDMI-CEC ) Yes
Digital Audio Out ( Optical ) Yes
HDMI A / Return Ch. Support Yes
Audio Return Channel Support ( via HDMI Port ) Yes
Wi-Fi 802.11ac
Terrestrial / RF Input 1 / 1 ( Common Use For Terrestrial ) / 0
RF In ( Terrestrial / Cable Input / Satellite Input ) 1 / 1 ( Common Use For Terrestrial ) / 0

Smart TV Features

Operating System Tizen™
Gallery Yes
Easy Setup Yes
App Casting Yes
Web Browser Yes
Remote Access Yes
Samsung TV Plus Yes
TV Sound To Mobile Yes
Bluetooth Low Energy Yes
Smart Things App Support Yes
Mobile To TV - Mirroring, DLNA Yes
Wired TV On - Samsung WOL Yes
Wireless TV On - Samsung WOW Yes

Other Features

Design Boundless Design
Bezel Type 3 Bezel-Less
Color Titan Gray
Front Color Titan Gray
Stand Color Titan Gray
Stand Type Quad Pod
Slim Type Slim Look
EPG Yes
V-Chip Yes
IP Control Yes
Instant On Yes
Game Mode Yes
IPv6 Support Yes
MBR Support Yes
Analog Tuner Yes
BT HID Support Yes
USB HID Support Yes
Caption ( Subtitle ) Yes
Digital Clean View Yes
Auto Channel Search Yes
ConnectShare™ ( USB 2.0 ) Yes
ConnectShare™ ( HDD ) Yes
Vesa Wall Mount Compatibility Yes
Mini Wall Mount Compatibility Yes
Accessibility - Voice Guide US English
Accessibility - Learn TV Remote / Learn Menu Screen US English
DTV Tuner ATSC / ClearQAM
Digital Broadcasting ATSC / ClearQAM
OSD Language English, Spanish, French
Accessibility - Others Enlarge, High Contrast, Multi-output Audio, Caption Moving, Separate Closed Caption

General Specifications

Power Requirements AC110-120V~ 50/60Hz
Power Consumption Max 190 W
Typical Power Consumption 73 W
Power Consumption Standby 0.5 W
Eco Sensor Yes
Auto Power Off Yes
Auto Power Saving Yes
Weight Without Stand 20.59 Kg
Weight With Stand 20.91 Kg
Weight Of Package Carton 28.62 Kg
VESA Wall Mount Compatibility 400 mm X 300 mm

Supplied Accessories

Remote Control TM1240A
E-Manual Yes
Batteries Yes
Power Cable Yes
User Manual Yes
Universal Guide Yes
Mini Wall Mount Support Yes
Vesa Wall Mount Support Yes
Full Motion Slim Wall Mount Support ( Y22 ) Yes
