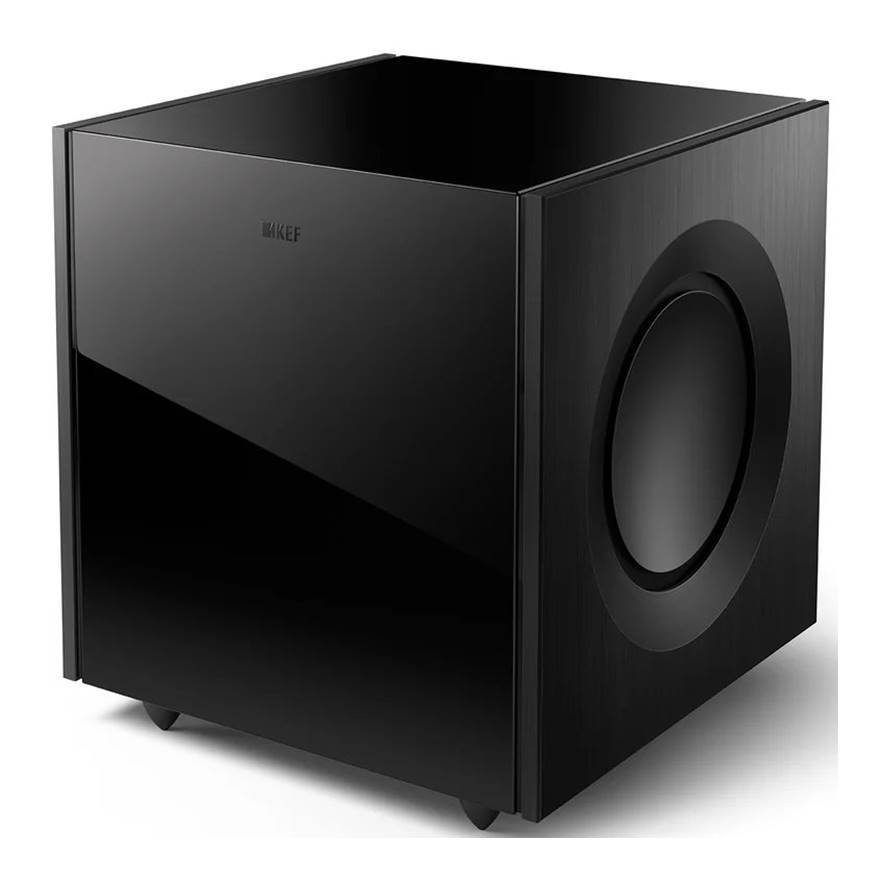

KEF Refrence 8B Subwoofer Specifications

LF Drive Unit : Equipped with 2 x 225 mm (9in.) low-frequency drive units, the subwoofer delivers powerful and impactful bass.
Maximum Output : Capable of reaching a maximum output of 110dB at 1m and 50Hz, providing a dynamic and immersive bass experience.
Low Pass Filter : Features a variable low pass filter with a frequency range from 40Hz to 160Hz, allowing users to customize the crossover point.
Frequency Response : The frequency response at 90dB output in free-space mode is ±3dB from 24Hz, ensuring accurate and balanced bass reproduction.
Amplifier : Powered by 2 x 500W Class D amplifiers with a switched mode power supply and DSP-based control section, delivering efficient and controlled power.
Inputs & Connectivity: Provides versatile connectivity options with analog XLR socket, speaker level inputs, and a link out via RCA phono socket. The subwoofer’s net internal volume is 23L.
